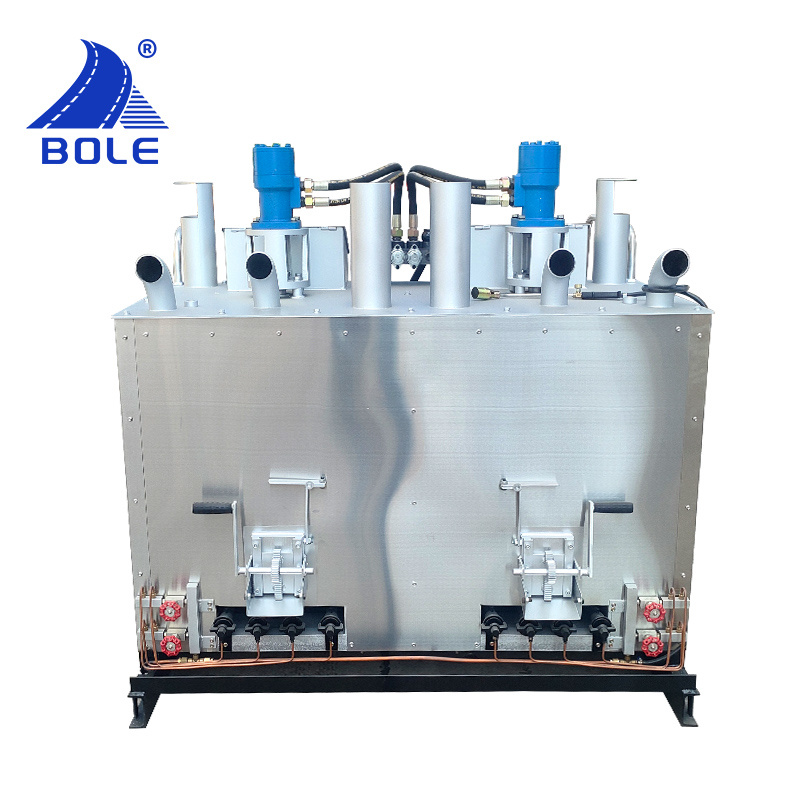

DOUBLE CYLINDER HYDRAULIC KETTLE
Ck800 hydraulic double cylinder hot melt kettle is one of the main equipment for hot melt marking construction. The equipment adopts multi-channel integrated hydraulic transmission with stepless speed change and strong torque to ensure high-performance and large load operation, and can stir in both directions. Direct fire high-efficiency energy-saving burner is adopted to ensure high combustion efficiency and save time and energy. It has the characteristics of high melting efficiency, long continuous working time, simple operation and convenient maintenance.
Classification:
Products
Key words: glass beads
Phone
E-mail：
DOUBLE CYLINDER HYDRAULIC KETTLE
Details Introduction
1. engine: 15HP electric start evaporative water-cooled diesel engine
2. hydraulic transmission system: multi-channel integrated hydraulic control valve, forward and reverse mixing, stepless speed change
3. stainless steel cylinder, high carbon steel bottom, vertical paddle mixer
4. structure: frame structure, insulation material is installed between the inner tank and the outer wall of the kettle
5. heating system: liquefied petroleum gas, imported four ring high-efficiency energy-saving burner, direct fire burner, or strip burner 6. safety device: specially designed overload overflow device can prevent misoperation
|
MODEL |
CK800 |
|
Outer dimensions |
1730*1620*1570mm |
|
Empty weight |
700kg |
|
Engine |
5HP electric start evaporative water cooling diesel engine |
|
Hydraulic motor |
BM TYPE |
|
Hydraulic oil tank volume |
40 L |
|
Kettle jar capacity |
360*2KG |
