ROAD MARKING MACHINE
The hand push hot melt marking machine is a kind of road construction machine which is widely used in the road, the high whole road, the parking lot, the square and the runway to draw the different restriction, the instruction and the warning and so on the level ground rule restraint sign
Classification:
Road marking paint
Key words: glass beads
Hotline:
E-mail：
ROAD MARKING MACHINE

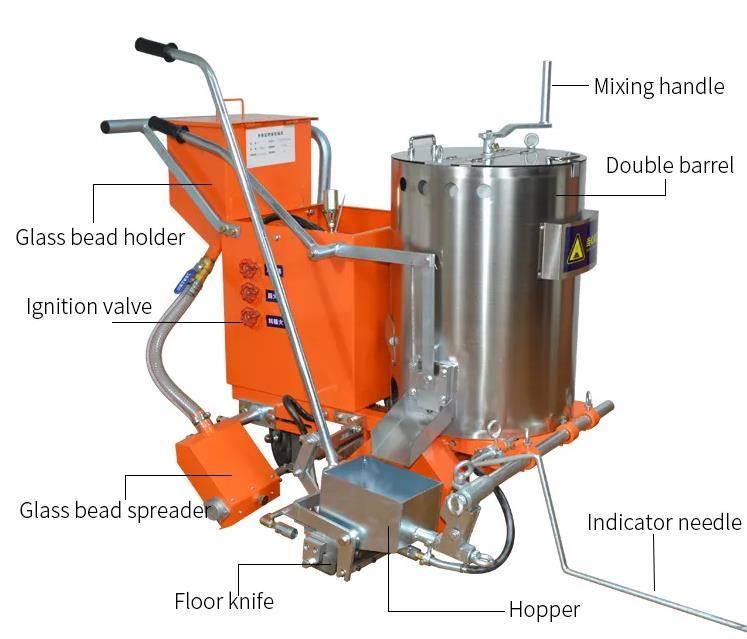

Details Introduction

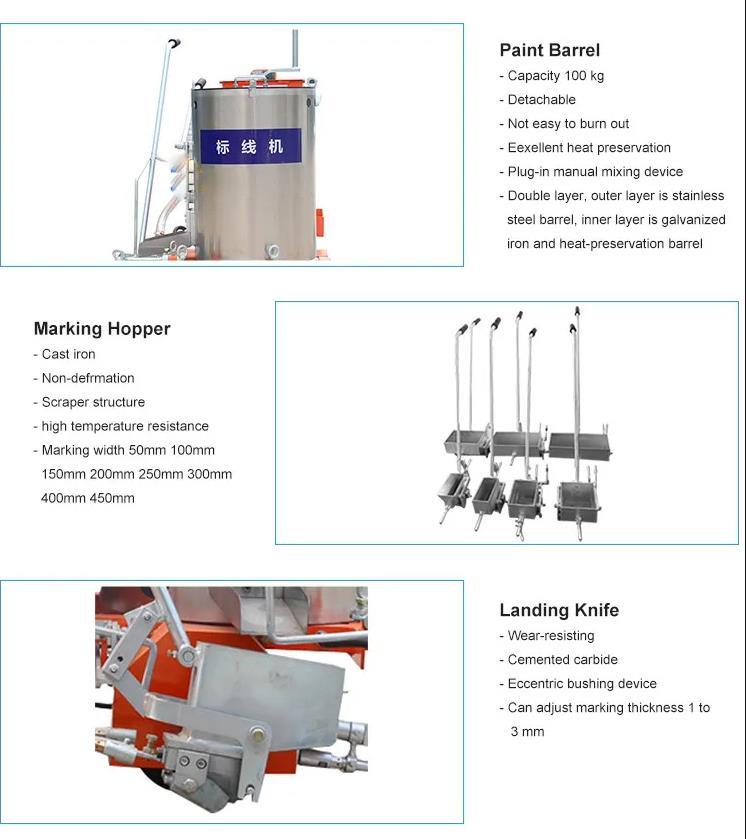

1. insulation barrel: double-layer stainless steel insulation heating barrel, double-layer stainless steel bottom, 100kg capacity, vertical manual mixing device, and removable barrel design.

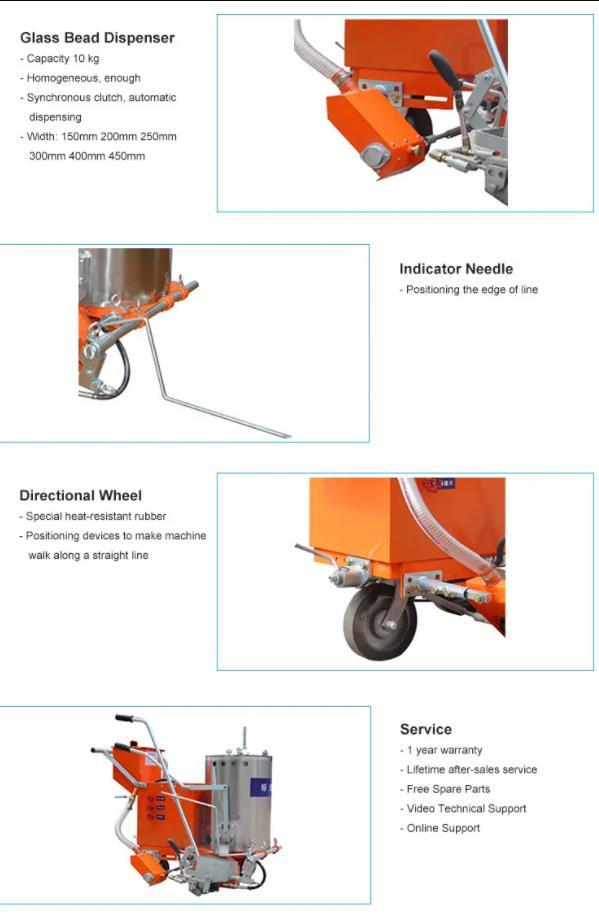

2. glass bead storage tank: 10kg/ box
3. adjustable glass bead seeder: synchronous clutch seeder, with speed regulating and shifting device. Adjustable width 50-200mm
4. scoring bucket: it is made of high-precision ultra-thin material and has a scraper structure. It adopts a single scoring bucket handle. The knife is closed without material leakage. The marking edges are aligned, the head and tail are aligned, and the thickness is uniform.
5. floor cutter: hard alloy, with eccentric sleeve device, which can adjust the marking thickness range: 1-3mm.
6. rubber wheel: aluminum alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line.
7. positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle body can walk in a straight line or turn freely
8. marking width: the standard configuration is 150mm, with different specifications such as 50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifica
